Using Clients to make a website to use your algorithm

Algorithm Clients

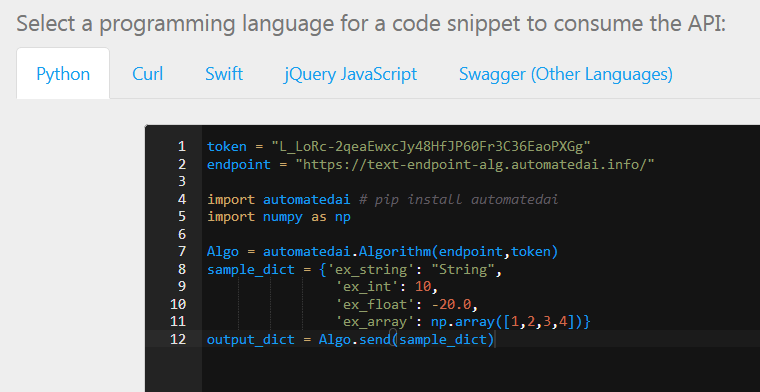

  • There are many different languages that you can use to make a website, python code with a Django/Flask server, JQuery Sample Code with a Javascript backend, or generate other language clients with Swagger

  • Python: Depending on data flowing a variety of ways to input and output the data into and out of the algorithm are generated.

  • Curl: Command Line version using the algorithm.

  • JQuery: A JavaScript example website is generated to access and use the algorithm.

  • Swagger File: Allows for Clients in any language to be generated.

automated.ai

Python Client

Using Python Clients


  • Using the python Code generated that uses the automated.ai PyPI library (pip install automatedai).

  • See Automated.ai PyPI package

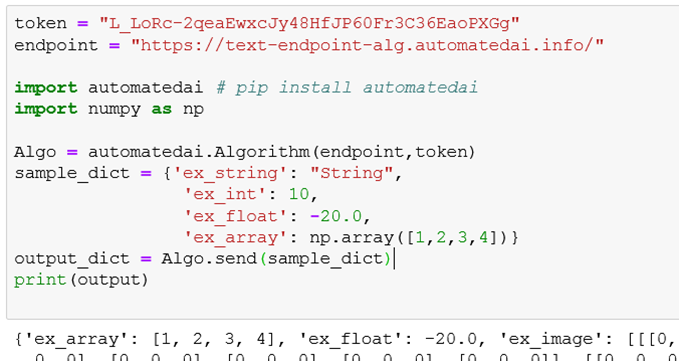

  • You can access and use the algorithm with just a few lines of code as shown in the Jupyter Notebook based on the sample code provided.

automated.ai

Generating Clients with Swagger

Swagger Clients


  • See http://editor.swagger.io/

  • Swagger can be used to generated clients.

  • Your swagger file is generated, simply cut and paste the file into a swagger editor and then you can test.

  • Click Authenticate and past the Token provided into the prompt.

  • Click on the POST and click Try it Out.

  • Specify a testing JSON or string to send and click Execute.

automated.ai

Testing with Swagger

Using Swagger


  • You should see an output JSON from the algorithm. In this case it is a JSON string.

  • You can now select different languages for the client to be generated.

automated.ai

Swagger Clients

The Magic of Generating Clients with Swagger


  • With the Swagger test of the API working correctly generate clients in languages based on needs.

  • Select from one of the many languages the code is automatically generated.

automated.ai

Using jQuery Client Website

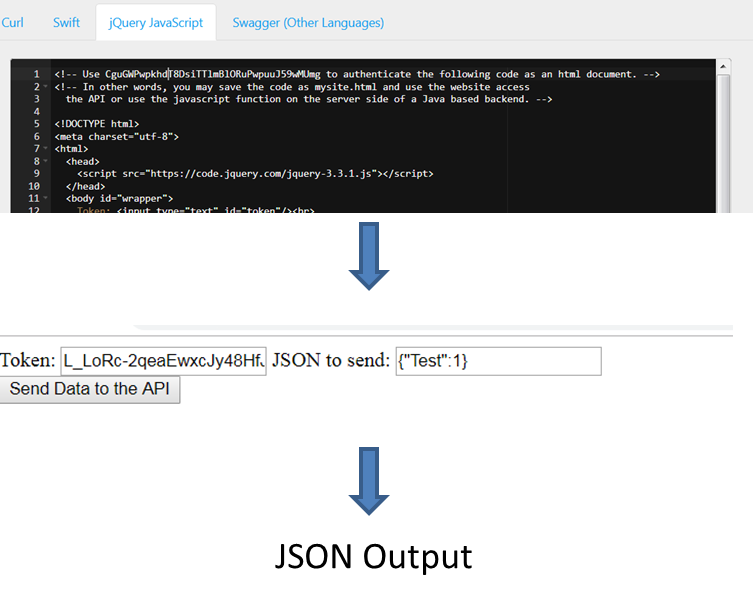

Use the JQuery HTML code to create a client demo website! Its simple to use your Generated Algorithm.


  • Copy the HTML code generated into a .html file.

  • Open the file in a browser.

  • Paste the Token copied from the top of the generated code into the Token field.

  • Send the data to the API.

automated.ai
